Viper Compact Steerable Jet-Powered Inspection System w/ Motorized Drum

Viper Steerable Jet-Powered Inspection System

Inspect and Clean Branched Pipes in One Run

Our VIPER® models enable an easy turning into branches. A switchable forward jetting nozzle for removing blockages and the Full HD live camera enables efficient work on all VIPER® models, even in hard-to-reach places.

Viper Demo Video

All VIPER® Models have the following features:

Camera cable integrated in the jacket of the HP-hose for optimal handling and protection against damage

Pipe Sizes 3”– 16”(DN 75 – DN 400)

Passes through and steers into multiple 45 deg bends in lines 3”(DN 80) and larger

Passes through and steers into multiple 90 deg bends in lines 4”(DN 100) and larger

HP hose length up to more than 330 ft (100 m) working pressure up to 4350psi (300 BAR)

Hose diameter 3/8”

Required water supply 1600 psi (110 BAR) 8 gpm (30 l/min)

Fresh water and recycled water operation

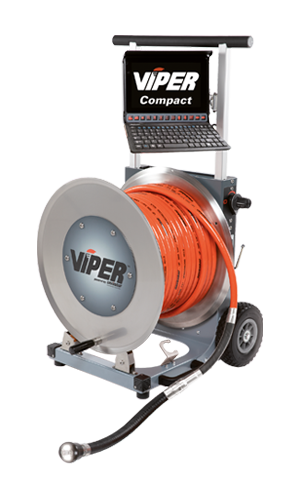

VIPER® COMPACT

Compact, ergonomic hose trolley with 200 ft (60 m) hybrid hose 3/8"
Includes comfortable automatic hose winding automatic
Tools always ready to hand in a convenient tool box
Dimension handle retracted: W x D x H: 23 x 20 x 28 inch (58 x 52 x 70 cm)
Dimension handle extended: W x D x H: 23 x 20 x 43 inch (58 x 52 x 110 cm)
Weight 119 lbs (53 kg) incl. 200 ft (60 m) hybrid hose 3/8"

Download Brochure
